OEM Live Streaming Camera Webcam PTZ Video Conferencing Video Camera Full HD 1920x1080

1 set
MOQ
OEM Live Streaming Camera Webcam PTZ Video Conferencing Video Camera Full HD 1920x1080
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Type: Video Conference System
Function: Video Conference
Simultaneous Interpretation: NO
Model Number: VHD-V71U
Product Name: Webcam PTZ Video Camera Full HD 1920x1080
Video Format: 1080p60,1080p50, 1080i/60,1080i50,1080p30, etc.
Sensor: 1/2.7", CMOS, Effective Pixel: 2.07M
Scanning Mode: Progressive
Lens: 12X, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom: 16x
Input/Output Interface: USB3.0; RS232; RS485
Input Voltage: DC 12V
Size: 128.5mmx 118mmx 156.2mm
Net Weight: 0.91kg
Grundinformation
Model Number: VHD-V71U
Zahlung und Versand AGB
Packaging Details: One piece in a box of Webcam PTZ Video Camera Full HD 1920x1080
Supply Ability: 500 Set/Sets per Day Webcam PTZ Video Camera Full HD 1920x1080
Produkt-Beschreibung
Product Description

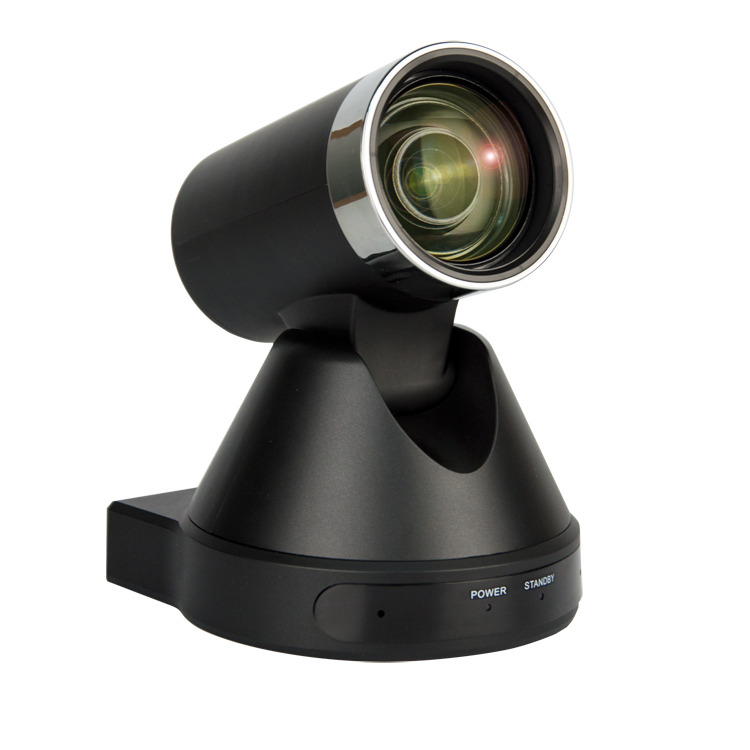

Webcam PTZ Video Camera Full HD 1920x1080

Main Features

---Completely New Look

Designed with worm gear transmission, completely new look, mini size, two colors for choosing from.


---Full Function USB Interface
Full function USB interface, compatibility USB3.0 and USB2.0, support audio, support compressed video output, support UVC protocol.


---Built-in Micphone (Optional)
Built-in micphone for optional, pickup distance up to 5 meters, high sensitivity and low base noise.


---1080P Full HD
Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor, can reach maximum 1920 x 1080 high resolution and achieve quality image.


---Ultra-high Frame Rate
The output frame rate up to 60fps in 1080P.


---72.5° Wide-angle Lens + 16x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 16x digital zoom.


---Low-light
High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear.


---Remote Control
Using RS232/485 interface, all the parameters of the camera can be remote controlled by the high-speed communications.

Technical Parameters

Technical Parameter

Product Name12X USB 1080p Video Camera
Camera
Video SystemHD: 1080p/60(Optional), 1080p/50(Optional), 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
Sensor1/2.7'', CMOS, Effective Pixel: 2.07M
Scanning ModeProgressive
Lens12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8
Digital Zoom16x
Minimal Illumination0.5 Lux @ (F1.8, AGC ON)
Shutter1/30s ~ 1/10000s
White BalanceAuto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual
Backlight CompensationSupport
Digital Noise Reduction2D&3D Digital Noise Reduction
Video S/N≥55dB
Horizontal Angle of View 72.5° ~ 6.9°
Vertical Angle of View44.8° ~ 3.9°
Horizontal Rotation Range ±170°
Vertical Rotation Range -25° ~ +25°
Pan Speed Range 1.7° ~ 100°/s
Tilt Speed Range 0.7° ~ 28°/s
H & V FlipSupport
Image FreezeSupport
Number of Preset 255
Preset Accuracy 0.1°
USB Features
Operate SystemWindows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux
Color System / CompressionYUV 4:2:2 / H.264 / MJPEG
Video FormatUSB3.0: 1080p/60(Optional), 1080p/50(Optional), 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
USB2.0: 1080p/30, 1080p/25, 1080p/15, 1080p/10, 720p/30, 720p/25, 960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50
Audio on USBSupport
USB Video Communication ProtocolUVC 1.0 ~ UVC 1.5
UVC PTZSupport
Input/Output Interface
USB Interface1xUSB3.0: Type B female jack
Audio Interface1-ch: 3.5mm Audio Interface, Line In
Communication Interface1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only
1xRS485: Share with RS232 Out, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P
Power JackJEITA type (DC IN 12V)
Generic Specification
Input VoltageDC 12V
Current Consumption1.0A (Max)
Operating Temperature-10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature-40°C ~ 60°C (-40°F ~ 140°F)
Power Consumption12W (Max)
MTBF>30000h
Size128.5x118x156.2mm
Net Weight0.91K g
Company Information

ValueHD Corporation

ValueHD Corporation is a professional AV integration and conference solution supplier, Stock No.: 871053. Since founded 9 years, the company has been focusing on the high-definition video camera and its accessories. Its products range from high-definition video conferencing PTZ camera, high-definition camera module with zoom lens for video surveillance, high-definition network camera, high-definition network camera with intelligence analysis capabilitie, MCU,All-in-one camera, microphone and etc.

ValueHD Corporation has successfully developed a variety of camera products. The technology and maturity of the product are among the leading group in this field. The company’s R & D model has gradually developed from integration at the module level to integration at the chip level. The latest types support 1080P60, WDR, and have high S/N ratio. The successful R&D works has proved that the company has mastered core techniques required for developing high-definition cameras, such as the ISP algorithm, video codec algorithm. Like many large company in the industry,we have also paid more attention on the reliability of hardware and software.

The company's core competence lies in deep understanding of the industry user needs, many years of experience in video communication, ability to convert advanced technologies into product, sincere customer service, and flexible business model.

The company welcomes customers to purchase products and services, as well as all forms of technology and product collaboration!
