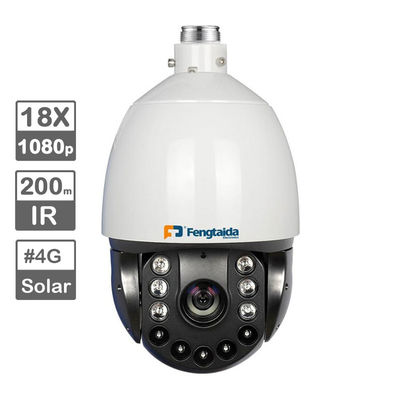

NIGHT VISION OEM POE wireless dome auto tracking camera surveillance solar outdoor wifi 4G ptz powered outdoor security cctv solar camera

1.0 Pieces
MOQ
NIGHT VISION OEM POE wireless dome auto tracking camera surveillance solar outdoor wifi 4G ptz powered outdoor security cctv solar camera
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: SG1822IRS
Warranty: 2 years
Special Features: NIGHT VISION, Two-way Audio, Human Motion Tracking, Motion Detection, Sound Detection, Vandal-proof, Face detection
Sensor: CMOS
Network: wifi, ONVIF, SDK, Ip
Function: Waterproof / Weatherproof, Two-way Audio, Vandal-proof, PAN-TILT, NIGHT VISION, Alarm I/O, RESET
Video Compression Format: H.265
Data Storage Options: NVR, Full HD, SD Card
Application: Outdoor
Customized support: Online technical support, Customized logo, OEM, ODM, Software reengineering
Focal Length:: X18
IR Distance: 200M
Material: Mental
Power Supply:: AC24V:8W-45W; DC12V:8W-36W
4G/WIFI: Yes
Pixel: 2MP
Operating Temperature: -45℃~70℃
Camera Type: HD 1080P IP Camera Module
Night vision: Night Visibility
Waterproof: IP 66 Waterproof
Channels: 16
Zertifizierung: ce, FCC, RoHS
Grundinformation
Zertifizierung: ce, FCC, RoHS
Model Number: SG1822IRS
Zahlung und Versand AGB
Packaging Details: Neutral carton
Produkt-Beschreibung
3 panel 100W 12V (Solar) + 3 sets 12V 60AH (Battery) provide a infrared PTZ speed dome camera for 3-4 days
(Continuous rainy weather)
Package Included
Solar Panel Specifications
Qty
100W Solar Panel
1.Type: Monocrystalline silicon; 2.Power: up to 100W
3.Working range: -40°-85°; 4. Working voltage: 18V
5.Frame material: high quality aluminum alloy
6.Conversion performance: 18%; 7.Dimensions: 150*54cm
8.Weight: 8.3KG; 9.Service life: >25 years
3
Ternary lithium battery
12V 60AH ternary polymer lithium battery, with perfect protection circuit, overshoot protection, over discharge protection, short
circuit protection, over current protection, high temperature protection. High energy density, small size, no need to bury, long
life, more than 1000 charge and discharge times.
3
Digital display controller:
Intelligent digital display, working status at a glance, support the maximum charge and discharge current 30A 12V overshoot,
anti-over-discharge. Trickle charging to extend battery life.
1
Boost power supply:
12V boost 24V power supply for 24V dome
1
Stainless steel waterproof box:
Standard 40*50 cm stainless steel equipment box, used to place batteries, controllers, switches and other accessories, send a pole
bracket, to prevent battery plug-in, better protect the battery.
1
Solar panel bracket:
Solar panel double board bracket set + single board bracket set (can be pole, roof, ground multiple installation)
1
Comes with accessories:
The solar panel includes a custom lengthened 3 meter cable (no need to manually wire), 12V lengthened 1 meter DC line, and the
bridge uses POE power supply module. The battery board is assembled with a wrench and the controller is mounted with a
screwdriver.
Complete Solution
Product Description
1.View Degree. Horizontal: Continuously 360°. Vertical: -10°~90° auto flip. 2. IP66 Rated for Weatherproof Outdoor Installations High strenght aluminun alloy housing with automotive grade painting，the durable PTZ network cameras perform good corrosion resistance and heat dissipation， and withstand extreme climate changes. They're compliance IP66、IK10 、6KV 3.Working envienment:-45°-70° ;flow duct design,automatic defog.(Double layer housing,allows to function at -45 °C；CTC technoloay,allows to function at 70 °C) 4.High Precision Step Motor ，Great image and no vibrating.，Preset accuracy is less than 0.1 degree. 5.High quality PU belt. No cursts and high precisly. 6.All-aluminum substrate Sensibly components layout ，Quicker heat dissipation，Longer service life 7.Easier Installation, Lower Maintenance，Modular design for circuit system，Once molding for core parts 8.Modular Design.I/O cable and waterproof plug to take a mold production，under long time use. High Waterproof Grade.
Dome type
IRS-001 Series High Definition IP Speed Dome Specifications
FTD-IRS-2122 (18X)
Network
Network Interface
Ethernet 10/100Base-T (RJ-45)
Network Protocol
TCP/IP，HTTP，NTP，IGMP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P
Compatibility
Support Hikvision,XM,TOPSEE etc center platform management software
Interface Protocol
ONVIF2.4/GB28181(Option- Customize)
Mobile monitoring
Operating System
Android/IOS
Camera
Image Sensor
1/2.8” 2.0M piexls Sony IMX327 CMOS
Optical Zoom
18X
Minimum Illumination
Color: 0.03Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on)
WDR
More than 100dB
S/N Ratio
More than 48dB(AGC off)
Day/Night
Auto(ICR) / Color / B/W
Angle of View
72° ~ 3.8°
Electronic Shutter Speed
1/2 - 1/20,000s
Noise Reduction
DNR,3DNR
Defog
Support
Max. Aperture
F1.5~F2.7
White Balance
Auto, ATW, Indoor, Outdoor, Manual
Gain Control
Auto / Manual
Video
Compression
H.265/H.264/MJPEG
Video Interface
1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB)
Resolution
Main stream:1920x1080,1280x960,1280×720,720×576,640×480
Sub stream:640×480,352×288,320×240,176×144
MJPEG:1920x1080,1280×720
Max Frame Rate
H.265/H.264: 30fps@1920x1080
Bitrate
MainStream:10.0Mbps@VBR/Sub Stream:32Kbps@VBR
Audio
Algorithm
G711,PCM
Input
1 x Line-In (Mini-stereo, Single Mono)
Output
1 x Line-Out (Mini-stereo, Single Mono)
Pan/Tilt
Range
Pan : 360°(Endless)/ Tilt: -10~90°
Pan/Tilt Speed
Preset Max.:131°/sec
Manual : 0.1° ~ 131°/sec (Zoom Proportional)
Patrol : 1.4°~131° /sec
Preset
247Presets and 8 presets for special function
Patrol Scan
3 Group Patrol
Other Functions
Auto Flip, Auto Parking, Power-up Action & etc
Alarm
Alarm Input
1(ON/OFF signal)
Alarm Output
1(ON/OFF signal)
Infrared
IR distance
200m(Max.)
Wave
850nm
Physical
IP protection
With IP66
Operating Temperature
–35℃~60℃
Humidity
0%~98% (Non condensing)
WIFI/4G Module
Extend WIFI /4G module(Option- Customize)
Store
TF Card
Power Source
AC24V 3A 60Hz/50Hz;
Power Consumption
AC24V：8W-45W
